CLASSIC
NXT Xtend LOW
Height Adjustable Back Support

NXT XtendLOW
HEIGHT ADJUSTABLE THORACIC
BACK SUPPORT

The Most Adjustable Back Support Available

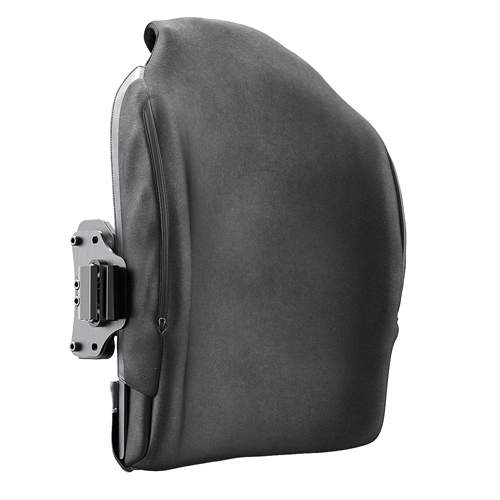

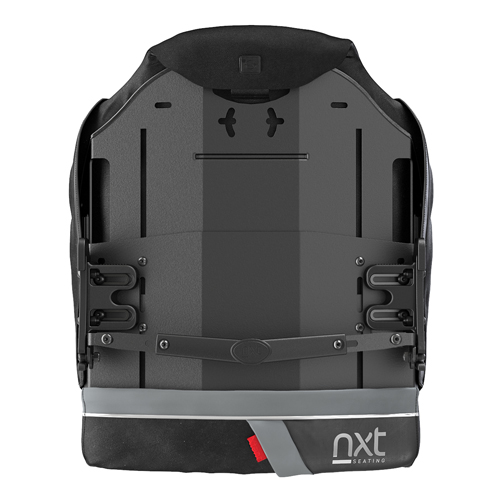

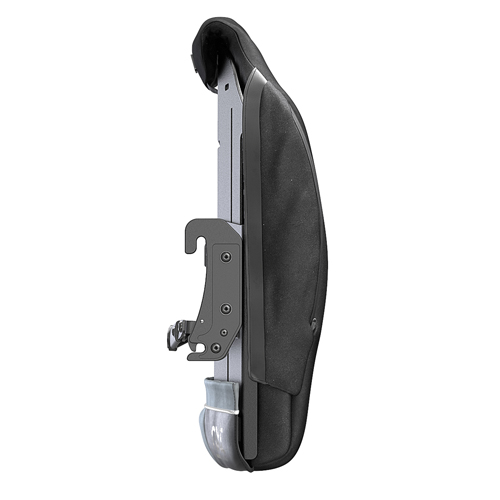

The Xtend LOW Back Support is one of the most highly adjustable back supports available today. Precise height adjustments allow for small incremental changes, or for a change in the users, condition which requires modification to the back height placement or contour support.

The NXT Xtend LOW and Xtend LOW DEEP Height Adjustable Thoracic Back Supports have been designed designed with with a lower than the standard back, with incremental height adjustments allowing for precise targeted support of the thoracic region

XTEND LOW PRODUCT / SPECIFICATION SHEET – ENGLISH   FRENCH

FEATURES

  • Built-in height adjustment allows back height, and lateral contour height to be set exactly where support is needed. Done quickly and easily with the user seated in the wheelchair
  • Two-piece lightweight aluminum shell

  • Adjustable upper section allows for optimal lateral thoracic support.

  • Fixed lower section supports the pelvic area

  • Xtend LOW is available in a Standard and Deep lateral contour depth. The Deep offers an adjustable depth of 5.5 in. to 7 in. (14 cm to 17.8 cm) for optimal mid-line support and positioning.

  • Scapula cut-out shape

WHAT’S INCLUDED:

  • Two-piece lightweight aluminum shell (height adjustable)
  • Depth adjustable lateral contours (DEEP Only)
  • Dual-density foam back cushion with smartGEL Infused Visco Technology
  • Pelvic/lumbar pads
  • smartx3D Antimicrobial polyester 4 way stretch cover (washable)
  • QuickFit Mounting System –Installation Hardware
  • One-Hand Quick Release

ACCESSORIES & OPTIONS:

  • Head supports
  • Lateral Supports
  • Replacement cover and foam
  • Incontinent infection control covers (inner and outer)

OFFERS UNPRECEDENTED COMFORT AND DURABILITY
Unlike two-dimensional fabrics, smartx3D uses a three-layer technology that includes two separate fabrics joined by a monofilament yarn that creates a breathable channel between the two fabrics. It is this channel that gives smartx3D its 3D structure and creating a “micro-climate” between layers. Heat and vapour move easily through the highly permeable fabric layer. smartx3D naturally offers a four-way stretch which provides enhanced immersion, aiding in pressure redistribution. Soft, breathable, and with moisture-wicking properties, smartx3D offers the ultimate in comfort.

  • Pill resistant and durable
  • Antimicrobial capabilities are built into the fabric and will not wash out
  • Improves immersion/envelopment
  • Reduces shear
  • 4 way stretch with 100% recovery
  • 20 times more air permeable than standard fabrics

The 3D construction enhances the fabric’s breathability, which in turn dissipates heat, keeping the wheelchair user cooler and dry.

smartGEL and smartx3D – THE PERFECT COMBINATION

The combination of NXT’s smartx3D fabric and smartGEL foam provides the ultimate in comfort and support in our NXT Seating products. Our smartGEL foam offers a higher IFD (Indent Force Deflection and Density), yet it is incredibly soft, highly resilient, and long-lasting. smartGEL is a Visco Elastic foam that is infused with gel. The gel is incorporated into the foam mixture at the molecular level, which allows for 100% homogeneous cooling with no breakdown of embedded gel beads.

  • Reduces surface temperature, drawing heat away from the skin
  • Provides superior comfort and softness
  • Highly resilient and long-lasting
  • Higher IFD (Indent Force Deflection and density)
  • The gel is 100% infused into the foam mixture vs. embedded “gel beads”

XTEND LOW BACK SUPPORT SPECIFICATIONS – INCH (CM)

XTEND LOW BACK SUPPORT SIZES – INCH (CM)

VIDEO

NXT Seating Products are sold throughout North America and Internationally.
